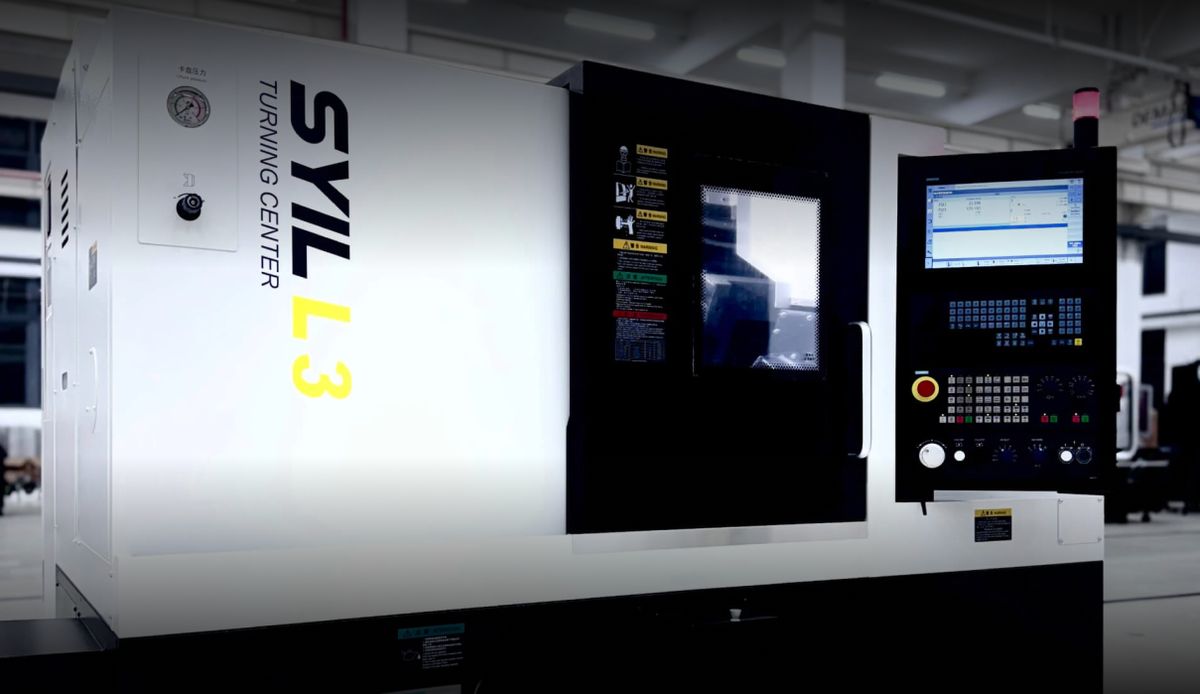

SYIL L3 CNC Lathe
High-Performance Turning
8-inch hydraulic chuck
Maximum swing diameter of ø500 mm
Through-hole diameter of ø63 mm
Optional Sauter servo turret
Power-driven tool speed of 5,000 rpm
BMT55 tool specification
Optional Y-axis

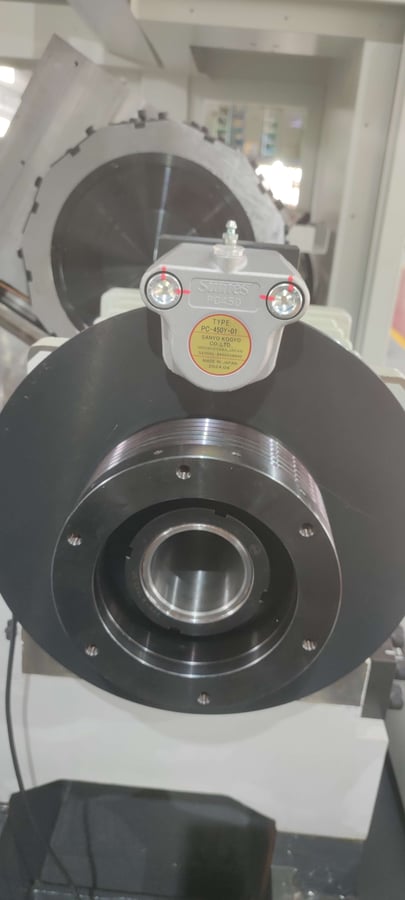

Optional sub-spindle
SYIL L3 Turning Center Packages Specs
Whether you are in the business of prototyping or small metal parts manufacturing, SYIL CNC lathes are the ideal choice for your CNC machining needs.
Specifications
Processing Capacity
Chuck size: 8 inches
Max. swing diameter over bed: ø550 mm
Max. swing diameter over carriage: ø290 mm
(with Y axis: 200 mm)
Max. workpiece length: 500 mm
(with Y axis: 530mm, with Counter Spindle: 450 mm)
Max. workpiece diameter: ø380 mm
Spindle
Max. speed: 4000 rpm
Spindle nose: A2-6
Spindle bore diameter: ø63 mm
Through spindle bore diameter: ø52 mm
Spindle power: 11/15 kW
Min. C-axis indexing: 0.001°

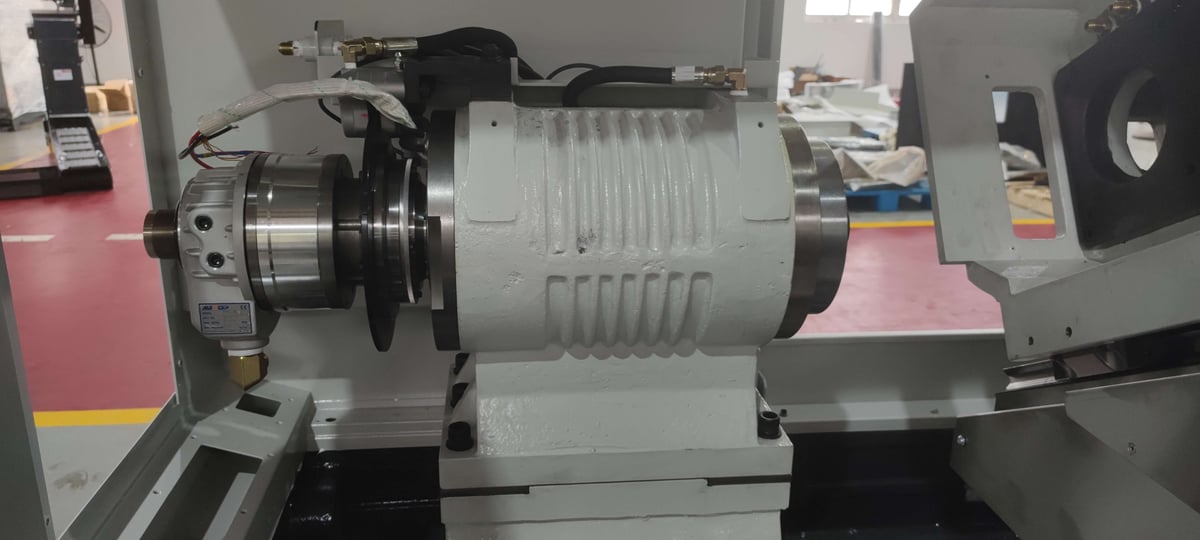

Counter Spindle
Chuck size: 6 inches
Rate speed / Max speed: 1750/6000 rpm
Spindle nose: A2-5
Spindle bore diameter: ø56 mm
Through spindle bore diameter: ø45 mm
Spindle power: 11 kW
Travels:530 m
Rapid traverse:30 m/min
Tool Holder
Type: Power Turret
Tools: 12
Min. Tool to Tool: 0.2 s
Max. Tool to Tool: 0.5 s
Max tool shank size: 25x25 mm
Max tool shank diameter: ø40 mm
Max. Live Tooling Speed: 5000 rpm
Live Tooling Model: BMT55
Travels
X Rapid traverse: 30 m/min
Z Rapid traverse: 30 m/min
Y Rapid traverse: 15 m/min
X Travels: 190+10 mm
Z Travels: 550mm (with Y axis: 490+-50 mm)

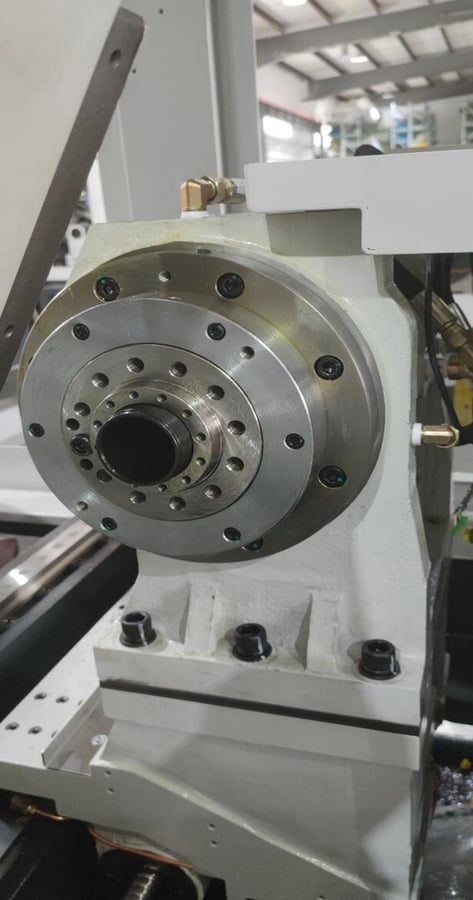

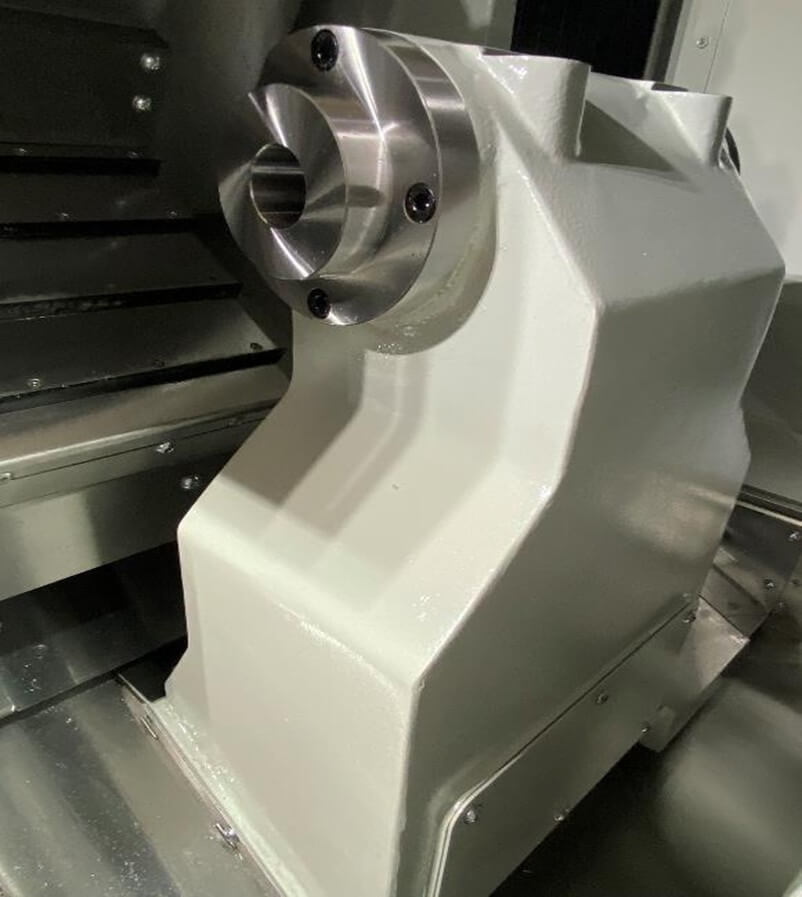

Tail Stock
Travels from Tail Stock to Chunk: 465 mm (with Y axis: 500 mm)
Tail Stock Rapid Traverse: 30 m/min
Sleeve taper: MT4
Accuracy
Finish turning cylindrical accuracy: IT6
Finish turning parts surface: Ra0.4-1.6
Finished turning parts roundness: ≤0.003 mm
Position accuracy (X): 0.005 mm
Position accuracy (Z): 0.008 mm
Repeat accuracy (X): 0.002 mm
Repeat accuracy (Z): 0.004 mm
Dimensions and Weight
Dimensions(LxWxH): 2500x1720x1740 mm
(with Y axis: 2680x1750x1850 mm, with Counter Spindle: 2680x1750x1850 mm)
Weight: 4000 kg
SYIL x Siemens
The SYIL L3 is equipped with the Siemens SINUMERIK 828D control system as standard. With its unique CNC performance, the SINUMERIK 828D control sets productivity standards when it comes to milling on SYIL machines. With the new SINAMICS drives and SIMOTICS motion control motors, the SINUMERIK 828D is now even more productive. The robust hardware architecture and intelligent control algorithms, together with the high-quality drive and motor technology, ensure maximum dynamics and precision during machining.
Enhance Your Precision Machining with SYIL CNC Lathes

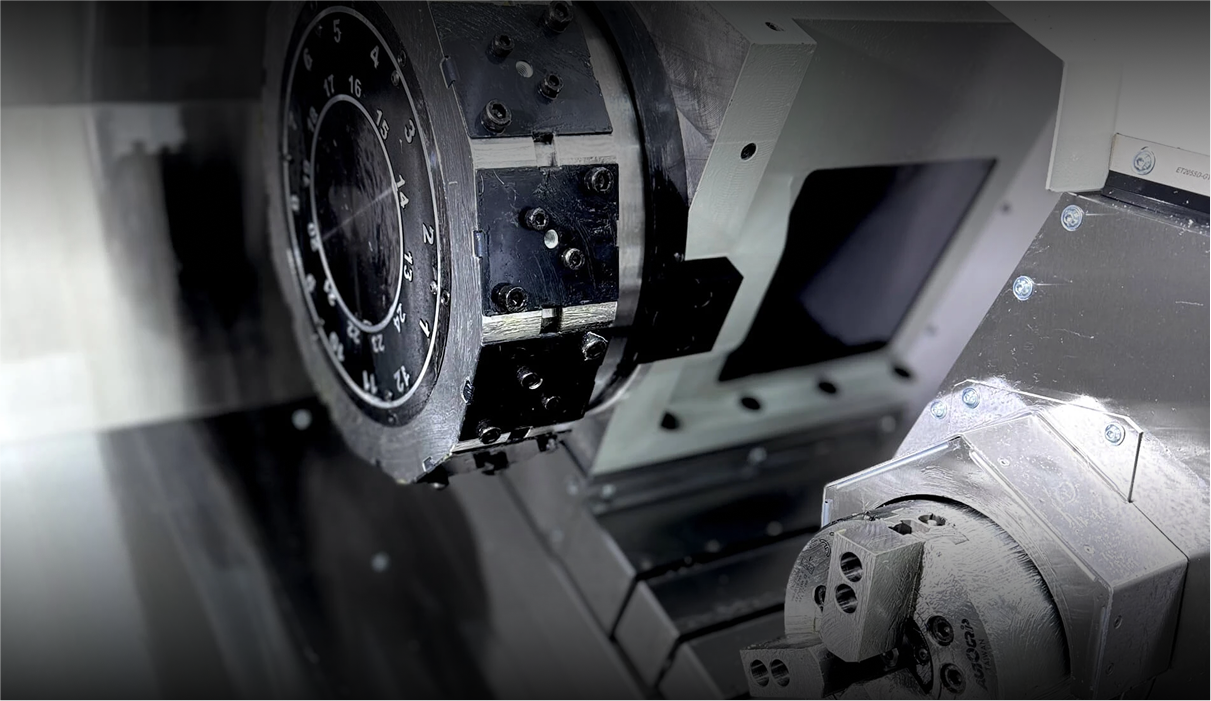

The SYIL L3 turning and milling composite machine tool features a German SAUTER power turret that greatly reduces tool changing time and improves chip rigidity. It has a compact footprint while providing a comfortable operating space and expandability.

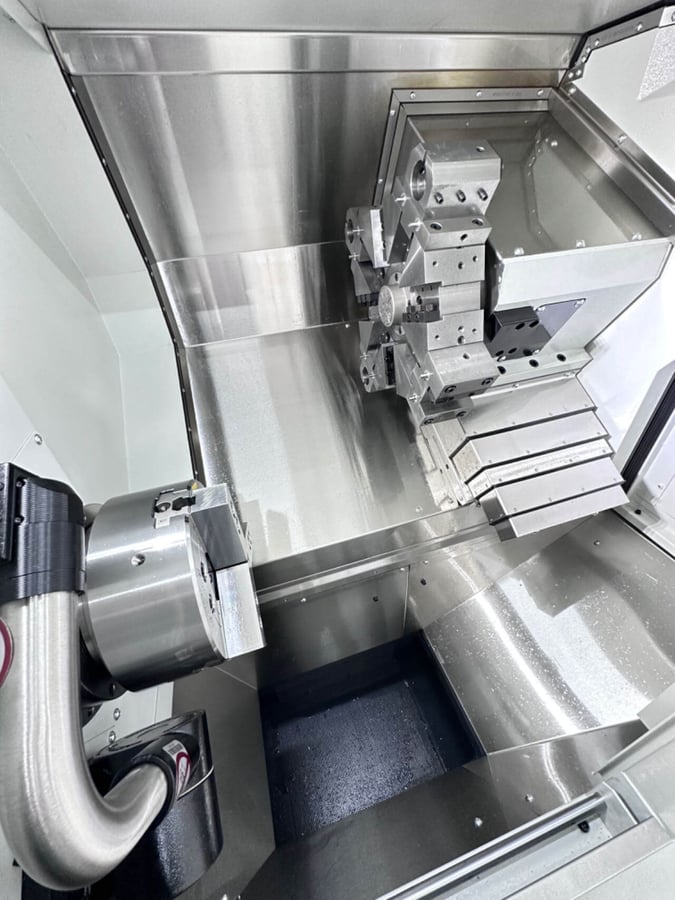

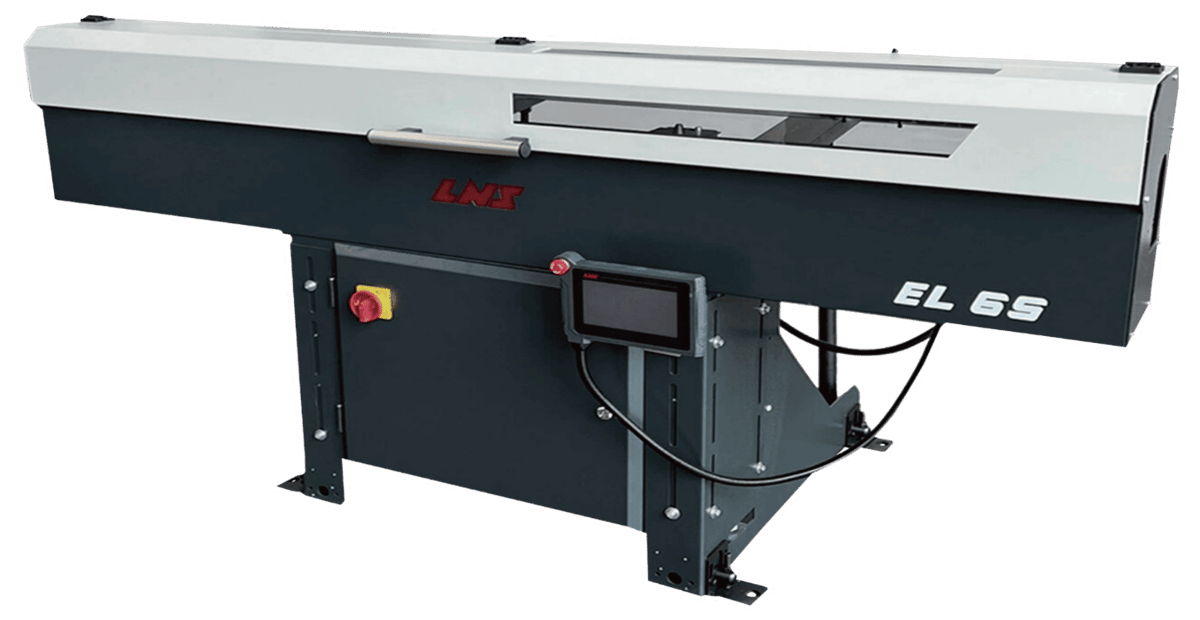

Various expansion function interfaces are reserved for achieving automated processing, such as automatic loading and unloading robots, automatic doors, automatic feeding, tool setters, and online workpiece inspection.
Modular design with powerful expandable functions
Compact machine layout for flexible production line combination
Optional mineral casting bed structure
High rigidity and good thermal stability
Direct-drive servo system with high-precision linear guide
Fully enclosed work area with stainless steel protective plates
User-friendly ergonomic design for operation and loading/Unloading
Easy chip removal design
Easy access to each Unit for maintenance
Expandable and customizable automation system

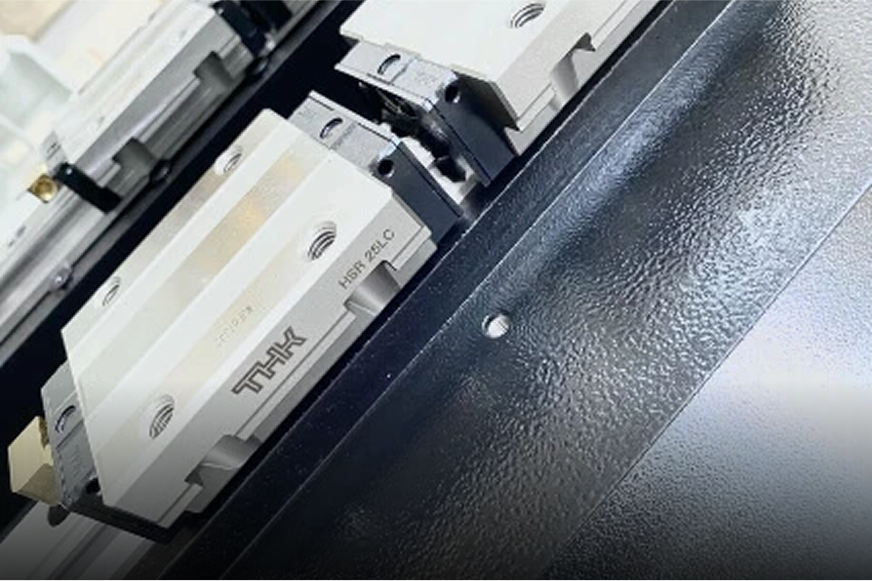

THK
High-precision Ball screws and linear guides

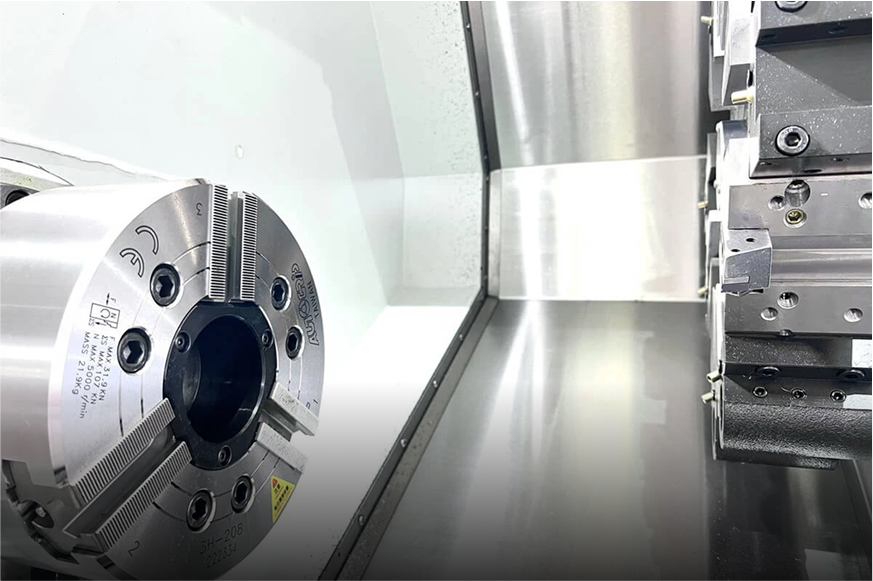

Optional SAUTER servo turret
5000rpm power tool spindle speed
High-speed servo spindle unit
Maximum spindle speed 4500rpm
All About the SYIL L3
Achieve Unparalleled Efficiency with SYIL Turning Centers
When it comes to efficiency, the SYIL Turning Centers are in a league of their own. These machines are designed to deliver exceptional results every time, allowing you to streamline your production process and maximize output.
One of the key advantages of SYIL lathes is their user-friendly interface. The intuitive control system allows operators to easily program and operate the machines, reducing setup time and increasing productivity. The integrated control panel is designed to be simple and straightforward, providing all the necessary information and functions at your fingertips.
SYIL lathes also offer a wide range of customization options to suit your specific needs. From spindle options to tooling configurations, you can tailor the machine to meet the unique requirements of your small parts manufacturing process. With SYIL, you have the flexibility to adapt and optimize your production to achieve maximum efficiency.
In addition to their exceptional performance, SYIL lathes are known for their durability and reliability. Built with high-quality materials and precision engineering, these machines are built to last. Whether you are running a small production line or a high-volume manufacturing facility, SYIL lathes can handle the demands of your operation with ease.
With SYIL Turning Centers, you can achieve unparalleled efficiency in your CNC machining operations. These machines combine advanced technology, user-friendly interface, and customizable options to deliver superior performance and productivity. Invest in a SYIL lathe today and experience the difference it can make in your small parts manufacturing process.
What Are the Advantages of Using a SYIL CNC Lathe?
The SYIL CNC Lathe, specifically the L3, offers numerous advantages for those in need of precision turning and machining. Here are some key benefits of using a SYIL CNC Lathe:
- Exceptional Precision: SYIL CNC Lathes are known for their high precision capabilities, ensuring accurate and consistent machining of metal parts. This precision is essential for industries like prototyping and small metal parts manufacturing, where accuracy is paramount.
- Versatility: The SYIL CNC Lathes are incredibly versatile, capable of handling a wide range of turning operations. Whether you need to create complex shapes, threads, or bore holes, the SYIL CNC Lathe can handle it all with ease.
- Efficient Production: With advanced automation features, the SYIL CNC Lathe helps streamline production processes, improving efficiency and reducing downtime. Its intuitive control system allows for quick setup and programming, enabling faster turnaround times and increased productivity.
- Durability and Reliability: SYIL machines are renowned for their durability and reliability. Built with high-quality components, these lathes are designed to withstand heavy usage and provide consistent performance over extended periods. This ensures long-term reliability and minimizes maintenance requirements.
